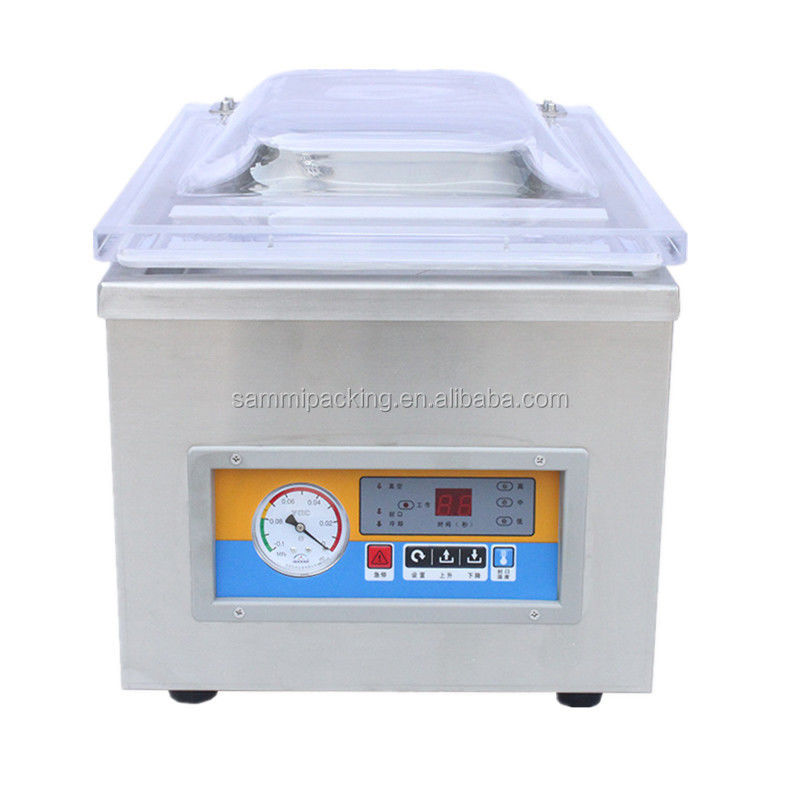

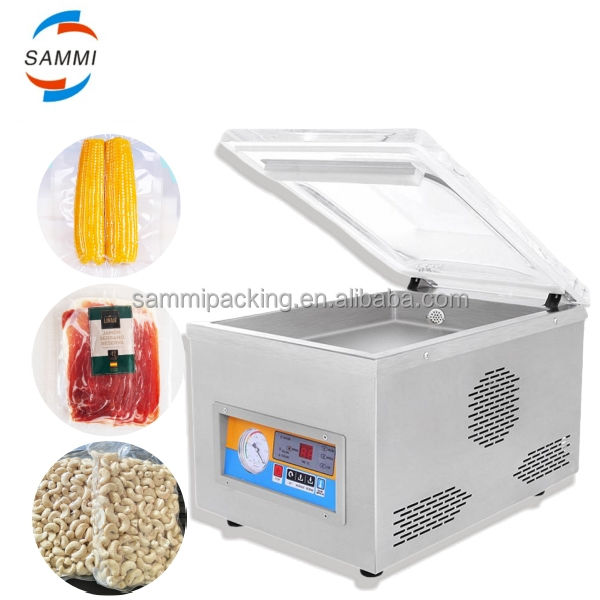

DZ-260 vacuum packaging machine is suitable for packing objects in small size,
as well as materials such as money, financial documents, vouchers etc.This package is set with the function of combing vacuum, sealing, peinting in one process and, for different packing materials and requirements, with the adjustable devices for the vacuum, hot-sealing temperature and time so as for the users to get optimum selection and adjustment for an optimum effect of packing
1. Vacuum packer has a simple working principle.
2. Vacuum chamber close the cover, the vacuum pump is working.
3. Vacuum chamber begins to draw out vacuum, and the packing bag is vacuum at the same time.
4 Meantime vacuum table indicators increased, reaching rated vacuum (control by the time relay ISJ), and then vacuum pump stops working, and the vacuum stops.
Vacuum sealer has a simple working principle.
Technical paramters:
| Model: | DZ-260 |
| Vacuum chamber size: | 280*385*50 mm |
| Lowest vacuum chamber Pressure: | 1.32 Kpa |
| Heat-sealing size: | 260 mm |
| Power source: | 110V/220V,650w |

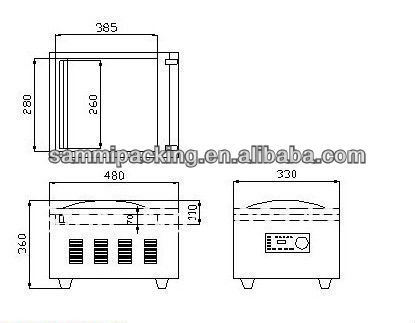

| Dimension: | 500*340*380 mm |
| Weight: | 36 kg |

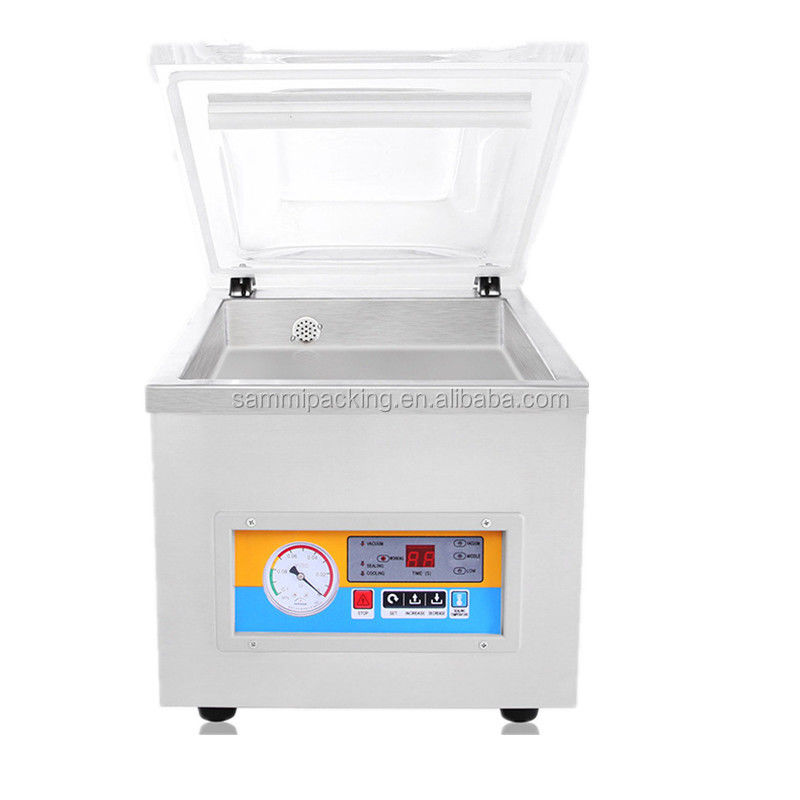

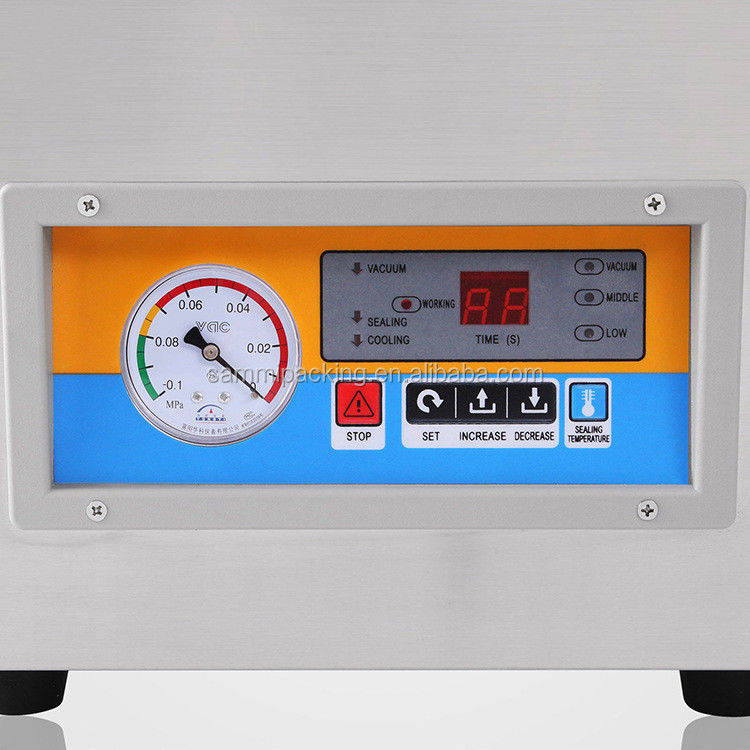

Machine details:
Sealing samples:
